Unity SDK

In order to show wearables in a game (scene) you need to do the next steps.

  1. Connect to a user’s Metamask wallet on Polygon chain.

  2. Authorize a user in Gravity API.

  3. Fetch user’s wearables

  4. Equip selected wearable.

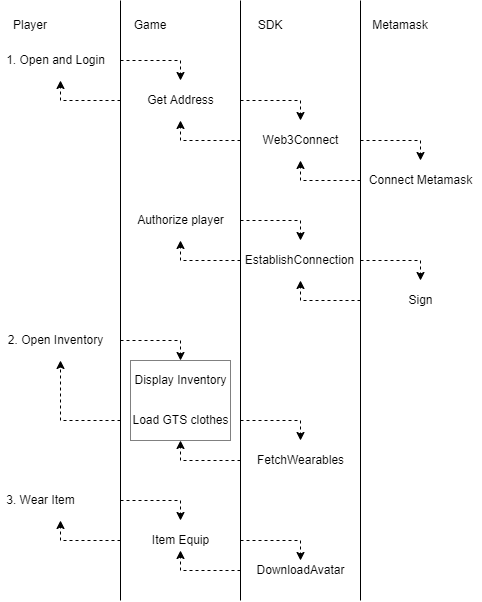

Flow scheme:

A single entry point for Gravity SDK is the class GravityLayerEntryPoint.

Connection to Metamask

To connect to a Metamask wallet, call Web3Connect() method from Assets/Plugins/GravityLayer/Example/Scripts/WebLogin.cs.

After successful logging in the user’s address will be available at PlayerPrefs.GetString("Account").

Example. See Assets/Plugins/GravityLayer/Example/Scenes/WebLogin.unity.

Authorization

The method EstablishConnection() from Assets/Plugins/GravityLayer/CoreAsync/Utils/Connection.cs authorizes users in Gravity API.

It asks the user to sign a message via Metamask and if successful saves an authorization token for further requests.

Example. See GravitySDK game object and attached GLayerManager.cs script in Assets/Plugins/GravityLayer/Example/Scenes/ExampleGravitySDK.unity scene.

Fetching wearables

To fetch wearables call FetchWearables() method from Assets/Plugins/GravityLayer/CoreAsync/Wearables/Wardrobe.cs.

It will fill in the public variable List<Wearable> Wearables.

Example. See FetchGLayerWearables() method in Assets/Plugins/GravityLayer/Example/Scripts/CustomizedInventory.cs script in Assets/Plugins/GravityLayer/Example/Scenes/ExampleGravitySDK.unity scene.

Equipping wearables

To equip a wearable call DownloadAvatar() method from the Downloader class.

Example. See DownloadAvatar() method in Assets/Plugins/GravityLayer/Example/Scripts/Inventory/ItemWearable.cs script in Assets/Plugins/GravityLayer/Example/Scenes/ExampleGravitySDK.unity scene.
